CHARACTERISTICS:
■ Newest Round Double Nozzle
The machine adopts new type round nozzle to enlarge the wrapped angle between fabric and lifting roller. Thus enforces the lifting reel and reduces the delivery pressure of the nozzle, improves the fabric surface quality greatly, eliminate fabric jam before the nozzle.
■ Novel Fabric-Liquor Separator
The novel fabric-liquor separator can lead the fabric into the fabric plaiting tank and also separate the fabric from the remained dye liquor before the fabric falls into the fabric tank, and via the internal return system, returns back to the bottom of the dye kier. Thus the circulation of dye liquor gets increased and more even dyeing effect obtained.
■ Newest pipe form net at the kier bottom
The newest pipe form net has improved the fabric delivery environment in the fabric tank and makes the fabric delivery more smooth and can be separated from the dye liquor more easily to achieve the lower ratio.
■ Unique waste collecting tank
The unique waste collecting tank can collect the floating ordure and impurity in the dye liquor directly and lead them to the overflow valve for drain, not absorbed by the fabric again, thus improves the rinsing efficiency.
■ Strong internal rinsing system
The strong internal rinsing system can clean the kier good and rapid.
■ Low ratio
The machine can run smoothly under very low ratio (1:5) for auxiliary and energy saving for water, electric, steam and etc) to lower the production cost.


STANDARD STRUCTURE
The dye kier and the parts in contact of liquor are made of high quality corrosion resistant stainless steel;
The fabric storage unit with Teflon pipes;
The lifting reel is with inverter control for variable speed 50~350m/min;
Fabric tangling release device
Fabric-liquor separating and collecting system
Overflow rinsing system
High efficient stainless steel circulation pump with inverter control
Pneumatic control valves for heating, cooling, filling, draining, and overflow rinsing
High efficient heat exchanger
Internal spray cleaning device
Level indicator with level sensor
Convenient feeding system
Automatic control cabinet with advanced micro processor
Stainless steel working platform

OPTIONAL EXTRAS
Seam detector.
Dosing feeding system with feeding pump
Proportional heating and cooling system
Second water supply and second drainage
Flow meter
Fabric plaiting device for unloading;

TECHNICAL DATA
Ratio: 1:5~8
Max. working temperature: 98C
Max. Working pressure: Atmospheric
Heating rate: 4C/min
(7㎏/cm2 in the scope of 25C~98C, dry saturated steam)
Cooling rate: 2C/min
(3㎏/cm2 in the scope of 98C~80C, 25C cooling water)

WORKING FLOW CHART

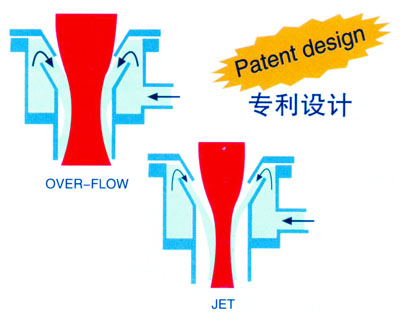

Special designed double nozzle can adjust the gap at both front and back side conveniently for different kinds of fabrics and no need to change different nozzles. Besides, it is also very convenient to clean the nozzles. The method is to speed up the pump and adjust the nozzle to the largest position, thus suitable for dyeing the fabrics of 60~400g/m.

SPECIFICATIONS


Model


No. of tubes


Capacity
(㎏)


Total Power
(kW)

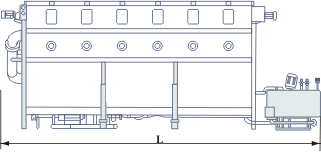

Dimensions

L (mm)

W (mm)

H (mm)

AT-C38-1T

1

150-200

12

2220

4420

3950

AT-C38-2T

2

300-400

18.8

3130

4420

3950

AT-C38-3T

3

450-600

26.1

4040

4420

3950

AT-C38-4T

4

600-800

33.8

5140

4560

3950

AT-C38-6T

6

900-1200

46.1

6880

4650

3950

AT-C38-8T

8

1200-1500

56.2

8580

4650

3950

FORM CHART


We reserve our rights to change the specification without prior notice.
